SeceuroDoor Industrial
Strong roller shutters with exceptional performance and endurance
The SWS UK industrial range is perfect for high usage applications like car parks and caters for large sizes.
Single skin and insulated slats are available along with vision options and multiple colours and finishes. We are proud to have partnered with GfA to offer industrial motors with an extended 2-year warranty, however other motors are available on request. The entire range is available as either a direct drive, inboard, single phase or 3 phase.
Exclusive, Extended Warranty Across our Full Range of Industrial Motors
Exclusive to SWS UK, the GfA industrial motors can be registered to receive an extended warranty of up to 2 years. Registering the motor will provide access to a whole host of other benefits, enabling you to:
- View and track all your registered GfA assets in one place
- Monitor ongoing usage
- Keep track of drive settings over time
- Access a comprehensive library of fault codes
- Sync your service records
Installation Options
We are able to offer three standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.
How to Install a SeceuroDoor Industrial Door
This official instructional video shows you how to install a SeceuroDoor Industrial Door around an opening (also known as face fix). With easy-to-follow instructions, this video guides you step-by-step through installing an SWS UK steel roller shutter.
|
Arrangement
|
Guide angle inset or outset
|
Drawing reference
|
|---|---|---|
| Face fix | Inset/Outset | INDUS 001 |
| Reveal | Outset | INDUS 002 |
| Mixed | Inset/Outset | INDUS 003 & INDUS 004 |

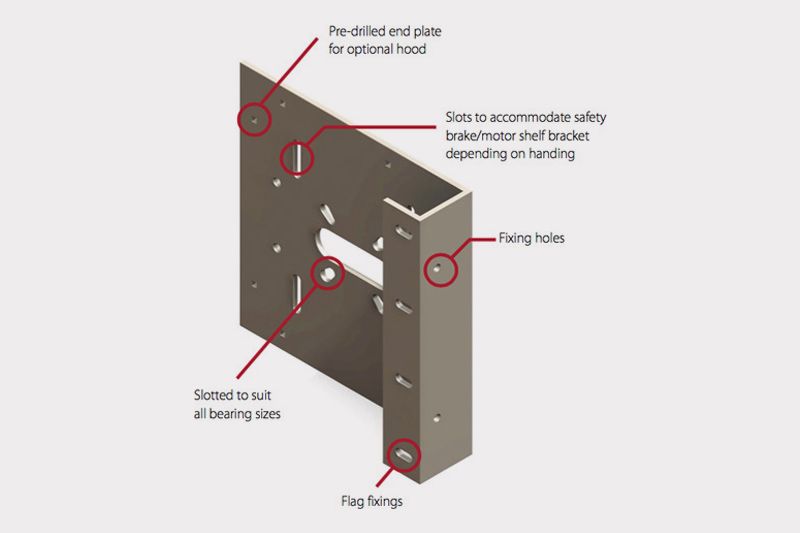

Universal, Laser-cut, Folded End Plate (Motorised shown)
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.

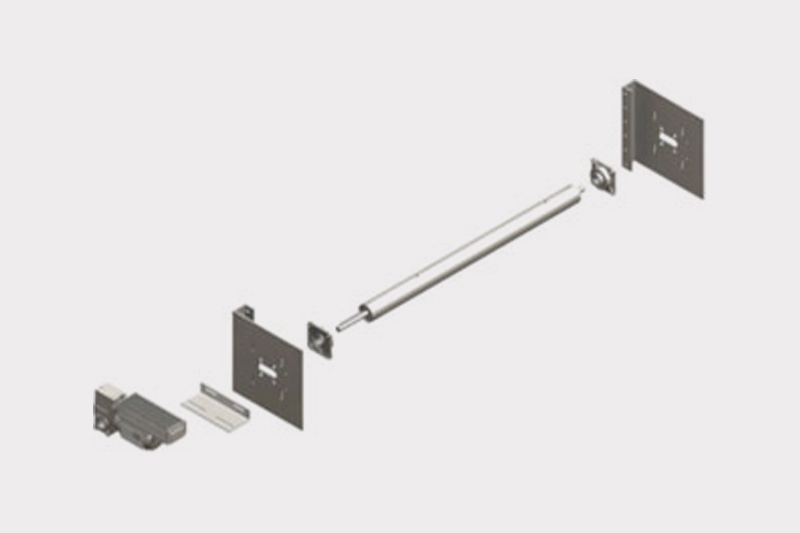

Typical Direct Drive Exploded Assembly
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.

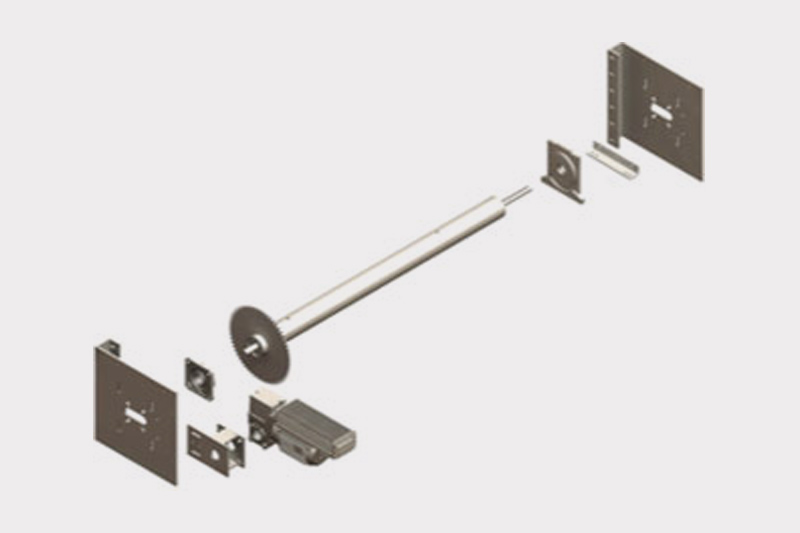

Typical Inboard Exploded Assembly
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.

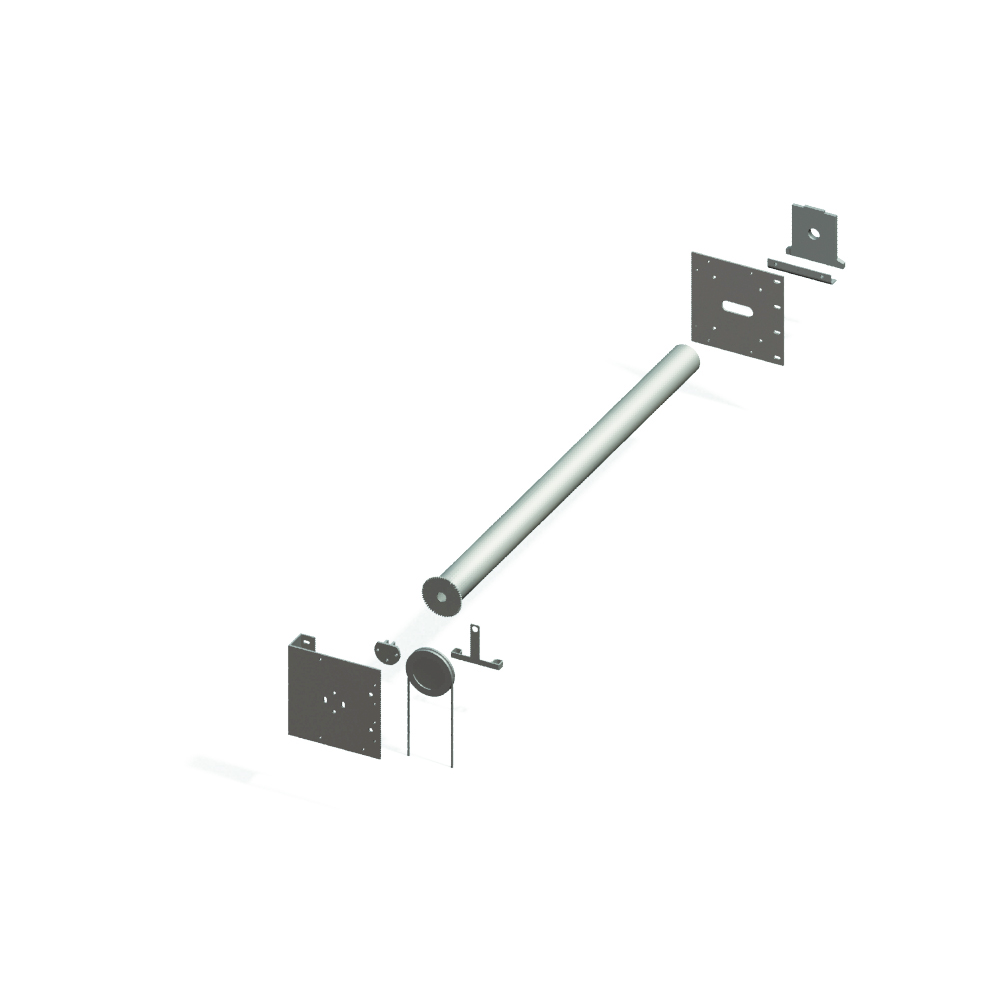

Typical Manual Chain Operated Exploded Assembly
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.
Universal, Laser-cut, Folded End Plate (Motorised shown)
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.
Typical Direct Drive Exploded Assembly
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.
Typical Inboard Exploded Assembly
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.
Typical Manual Chain Operated Exploded Assembly
We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.
Powder Coating
Polyester powder coating is a surface finish applied to shutters and retractable gates in a solid, powder form after careful pre-treatment of the surface. The coating is fused by heat to produce a continuous film and curing of the coating gives its design properties. The result is a high performance finish that delivers exceptional corrosion protection, durability and resistance to yellowing making it suitable for both interior and exterior use. The process is virtually emission free, so is environmentally friendly.
Features
- Typically 60-80 Microns coating thickness
- Excellent corrosion protection
- Superior colour stability
- Tough yet highly flexible
- Extruded profiles and the aluminium shutter box profiles are powder coated in a satin finish (unless stated otherwise).
Gloss Levels
Gloss (80% +⁄-5%): A highly reflective smooth surface. Gloss surfaces due to their highly reflective appearance tend to highlight surface imperfections.
Satin (65% +⁄-5%): A satin finish is not as reflective as the gloss finish and because of this is less likely to show any surface imperfections. Satin finishes also provide a good surface for cleaning and resisting abrasion. Unless stated otherwise this is the standard finish supplied.
Matt (30% +⁄-5%): A matt finish due to the low gloss level is very good at concealing surface imperfections. Due to the textured finish the surface is more difficult to clean than a surface with a higher gloss level.
Powder coating of the SeceuroDoor 100 will be to the external face only.
Colours
All colours are supplied in Satin as standard, Matt & Gloss are available.
Features
- Typically 60-80 Microns coating thickness
- Excellent corrosion protection
- Superior colour stability
- Tough yet highly flexible
- Extruded profiles and the aluminium shutter box profiles are powder coated in a satin finish (unless stated otherwise).
Gloss Levels
Gloss (80% +⁄-5%): A highly reflective smooth surface. Gloss surfaces due to their highly reflective appearance tend to highlight surface imperfections.
Satin (65% +⁄-5%): A satin finish is not as reflective as the gloss finish and because of this is less likely to show any surface imperfections. Satin finishes also provide a good surface for cleaning and resisting abrasion. Unless stated otherwise this is the standard finish supplied.
Matt (30% +⁄-5%): A matt finish due to the low gloss level is very good at concealing surface imperfections. Due to the textured finish the surface is more difficult to clean than a surface with a higher gloss level.
Powder coating of the SeceuroDoor 100 will be to the external face only.
Colours
All colours are supplied in Satin as standard, Matt & Gloss are available.
Motor Options
GfA supplied as standard.
Ellard and Link motors are also available, price on application.

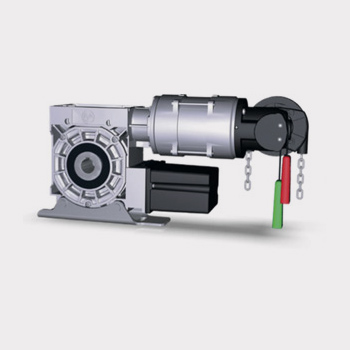

Safedrive (35/15 to 65/10)
Drive Systems for non counter-balanced Industrial Doors
- Models from 170 Nm to 1800 Nm
- High precision worm drive gearbox
- Range of output speeds and torques
- Horizontal or vertical mounting
- Safety brake incorporated
- Low level hand chain operation as standard
- Plug-connected control equipment
- Certified to BS EN 12453

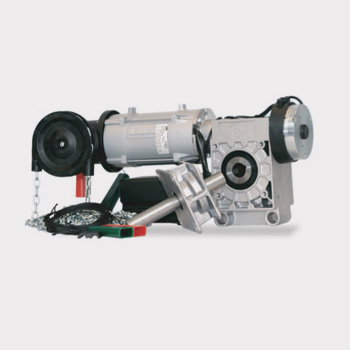

Ranger 90 & 150
Drive Systems for Industrial Rolling Shutters
- Range of output speeds and torques
- Available with either digital or mechanical limits Horizontal or vertical mounting
- Low level hand chain operation as standard Plug-connected control equipment
- Certified to BS EN 12453:2001-02
SeceuroDoor Industrial Range
